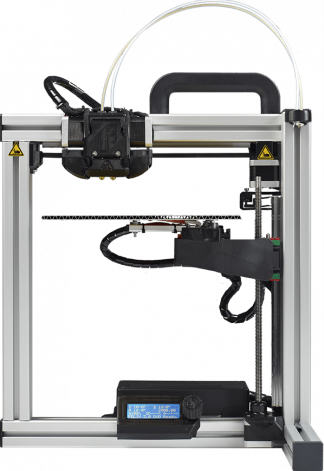

FELIX 3.2 – DIY Kit Tech Specs – FELIXprinters

Technical Specifications
FELIX 3.1 DIY-kit

43

Printer Name

FELIX 3.1

Dimensions and weight

Printer Size

450x410x520 mm

Weight

9 kg

Build Volume

Size (X, Y, Z)

255 (*240 dual head) x 205 x220 mm

Printer and printing properties

Print Technology Fused Filament Fabrication
Layer resolution
Low 250 microns
Normal 200 microns
High 150 microns
Very High 100 microns
Extreme 50 microns
Build plate Heated bed.
Upto 95 °C
Build plate leveling Manually, 3 points
Print head Single or Dual Head
Build speed 0.35mm nozzle upto 15 mm3/s
(ABS @ 250°C)
Print head travel speed Up to 200mm/s
Filament feeder type Direct geared extruder
Nozzle diameter 0.35 standard. Optional 0.5 mm
Nozzle amount 1 or 2 nozzles.
2 nozzles is optional,
including intelligent dual head nozzle system.
XYZ resolution XY, 13 microns
Z: 04 micron
XYZ typical print accuracy +/- 0.1mm for objects up to 100mm
Nozzle temperatures Up to 275 °C
Nozzle heatup time Approx 1.5 min @ 200 °C
Buildplate heatup time Approx 2.5 min to 60 °C

Materials

System Open filament system, use filament from any supplier
Filament diameter 1.75mm
Supported materials Recommended: PLA, PETG, ABS,PVA
Specials: Any filament which melts under 275 °C

Requirements

Software Repetier-Host, freely downloadable from our website or Simplify3D
Supported OS Windows 7 and upwards
Mac OS X
Linux (repetier-host)
Supported file types STL
Printer communication USB
Standalone via micro SD card (not included)
Operating ambient temperatures 15 to 32 °C
60 – 90 °F
Storage temperatures 0 to 40 °C
Input 100 - 240V
4A, 50-60Hz
250W max.
Output 12 V DC, 20 A
Supported file types STL
Printer communication USB
Standalone via micro SD card (not included)
Operating ambient temperatures 15 to 32 °C
60 – 90 °F
Storage temperatures 0 to 32 °C

Service and support

Warranty 12 month limited warranty. (Wearable parts not included like hot-ends)
Lifetime support Expert technical support via email, phone and skype. Also our global community is available to help you.
Extended support Online support pages, our knowledgebase and clear manuals, tips and tricks to get the most out of your printer.
Included in the box
  • Small tool kit
  • AC Power supply cord
  • USB cable
  • 12 month warranty
  • QuickStart Guide
